Musicanic.Com
Mechanical Music Restoration
Supplies & Services
Supplies
Place your order
here
orders@musicanic.com
Restoration Materials
Printable
pdf version
Books *REDUCTIONS*
Restoration
Materials
Printable
pdf version
Prices may change as new stock is purchased.
UPDATED December 2008
Silicone Rubber Tubing
|
Internal Dia. |
Prices |
||||||
|
mm. |
Ins. |
Per 20m |
Per metre |
Per 305mm.(ft) |
|||
|
T1 |
3.4 |
1/8 |
(looks like the original grey tubing) |
£17.5 |
£ 0.90 |
£0.28 |
|
|
T2 |
4 |
5/32 |
Black |
£27.00 |
£ 1.38 |
£0.42 |
|
|
T3 |
5 |
3/16 |
Grey |
£35.00 |
£ 1.80 |
£0.55 |
|
|
T4 |
6.3 |
1/4 |
Black |
£ 2.02 |
£0.62 |
||
|
T5 |
7.9 |
5/16 |
Black |
£ 6.43 |
£1.96 |
|
|
|
T6 |
9.5 |
3/8 |
Grey |
£ 6.50 |
£1.98 |
|
|
|
T7 |
12.5 |
1/2 |
Grey |
£ 6.63 |
£2.02 |
||
|
T8 |
15.9 |
5/8 |
Black |
£ 8.07 |
£2.46 |
||
|
T9 |
19.1 |
3/4 |
Brown |
£ 8.86 |
£2.70 |
||
|
T10 |
22 |
7/8 |
Brown |
£11.09 |
£3.38 |
||
|
T11 |
25.4 |
1 |
Brown |
£11.35 |
£3.46 |
||
|
T12 |
29 |
1 1/8 |
Brown |
£14.02 |
£4.28 |
||
|
T13 |
32 |
1 1/4 |
Brown |
£15.30 |
£4.67 |
||
|
T14 |
38 |
1 1/2 |
Brown |
£18.00 |
£5.49 |
||
Selecting
Tube Size
The sizes quoted are actual Internal Diameters. To select the right size
either measure the Internal Diameter of the existing tubing in the middle
of a run and select the nearest size from the above, OR, measure the Outside
Diameter of the fixed metal tubes and select the next size down from the
above in order to get a secure fit. If you are still unsure, send me a
sample of the existing tubing and I will recommend the best size. The
very small "Tracker Bar" tubing is 1/8" on the majority of player pianos,
but some did use larger sizes, always check as above.
|
Prices |
|||||
|
Per Metre |
Per 305mm.(ft) |
||||
|
C1 |
Extra Thin (~0.2mm) |
For speaking pneumatics. |
£34.00 |
£10.37 |
|
|
C2 |
General Purpose (~.3mm) |
Wind Motors/Tracking pneumatics. (Rubber one side) (152cm. wide) |
£32.73 |
£9.98 |
|
|
C3 |
Thin Double Texture (~0.33mm) |
Expression boxes, tempo, Pedal motor control. (152 cm. wide) (Cloth both sides, rubber in centre) |
£39.50 |
£12.05 |
|
|
C4 |
Double Texture Heavy Duty (~1.2mm) |
Pedal Exhausters, Ballast Units, Electric Pumps. (170cm. wide) (Cloth both sides, rubber in centre) |
£48.22 |
£14.70 |
|
| C5 | Reed Organ Cloth (~0.6mm.) | For
Reed Organ bellows, Harmoniums, and larger Organettes. (147cm.
wide). (Rubber one side) |
£52.00 | £15.86 | |
|
Description
(Click link for picture) |
Price per sq.ft. | |
|
L1 |

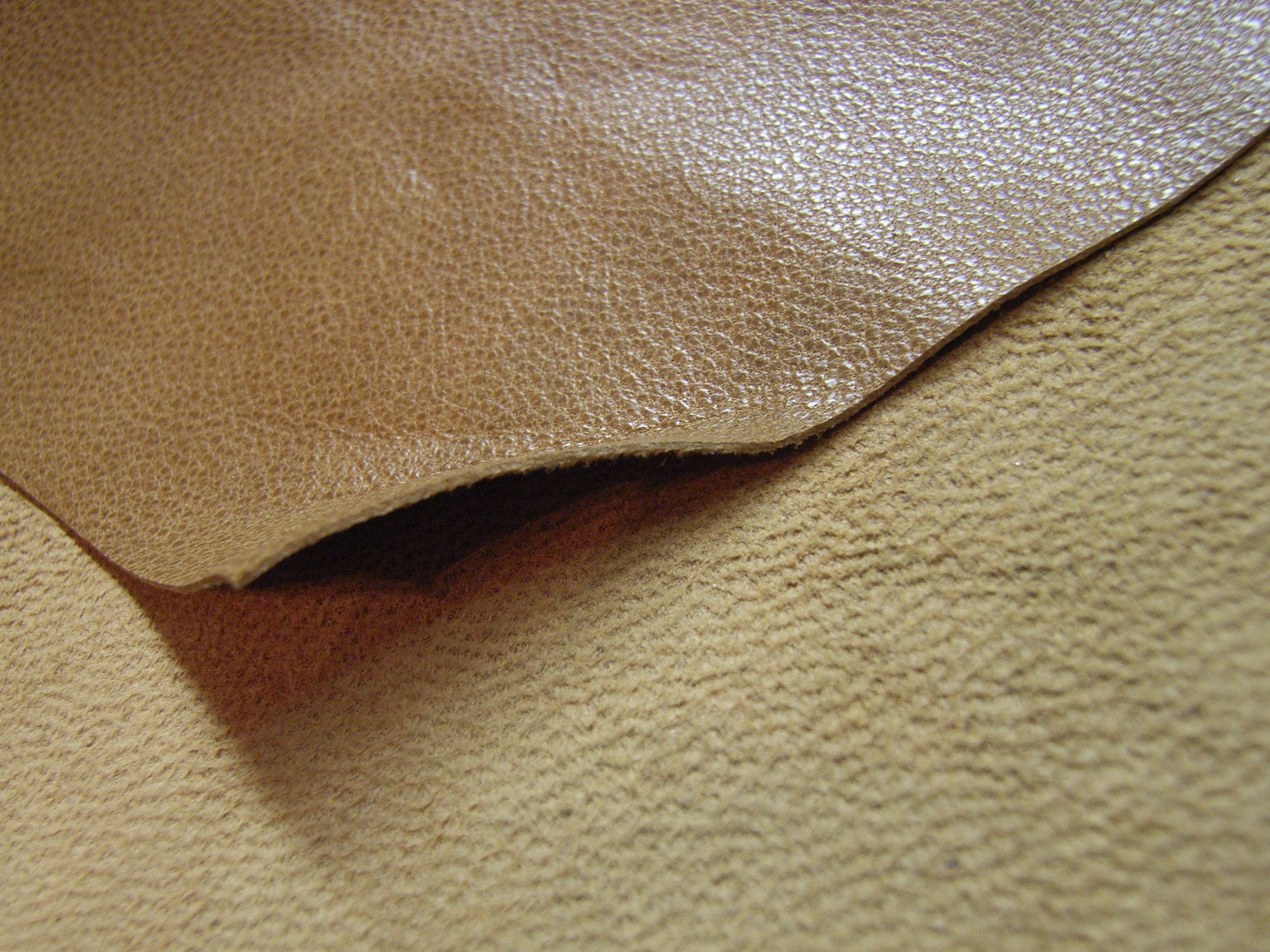

Perfection - thin brown pneumatic skiver for pouches. 0.25-.5mm. |
£14.40 |
|
L2 |

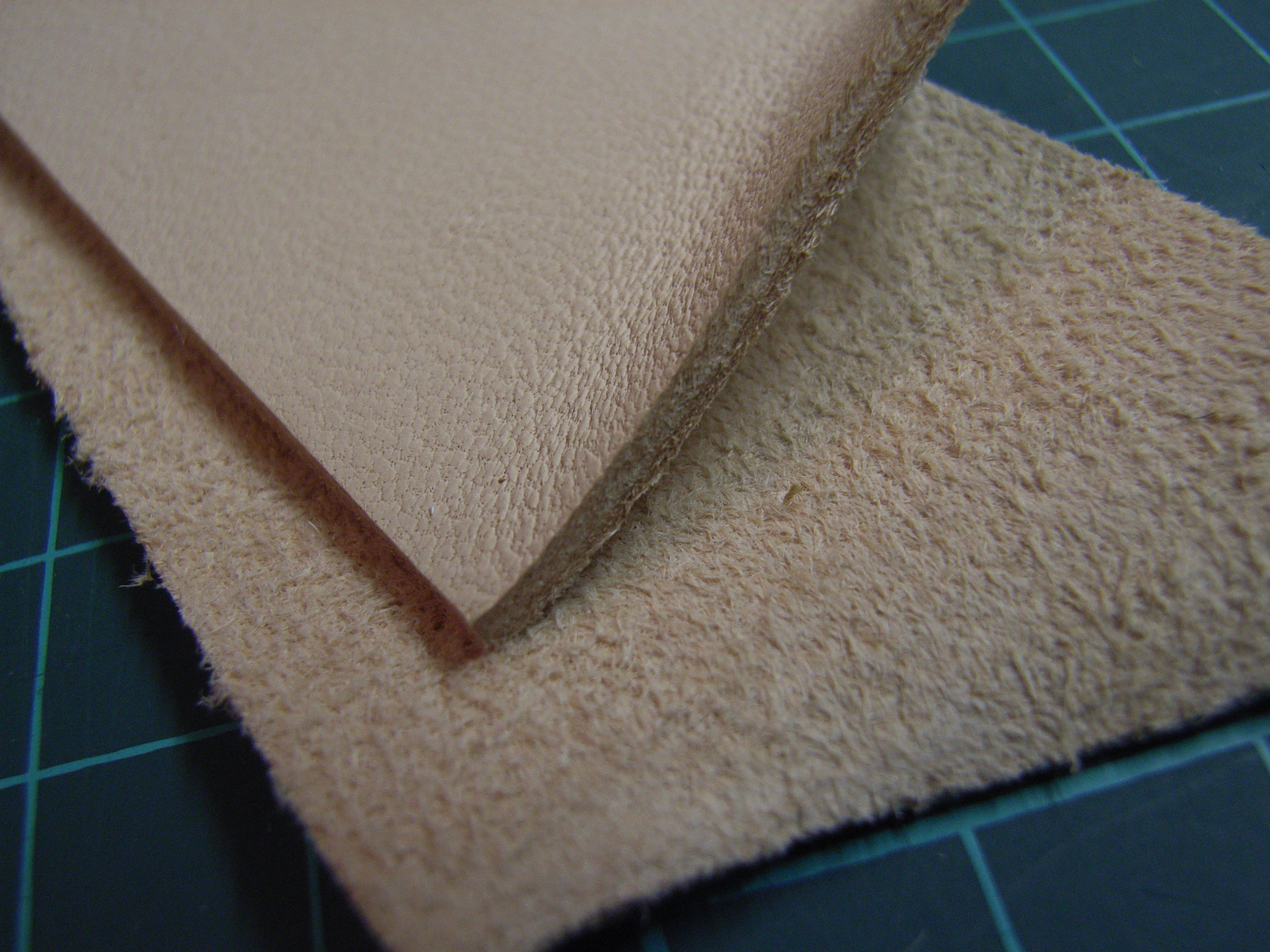

Bazil - for flap valves 1 - 1.2mm. (We will cut to your size) |
£14.40 |
|
L3 |

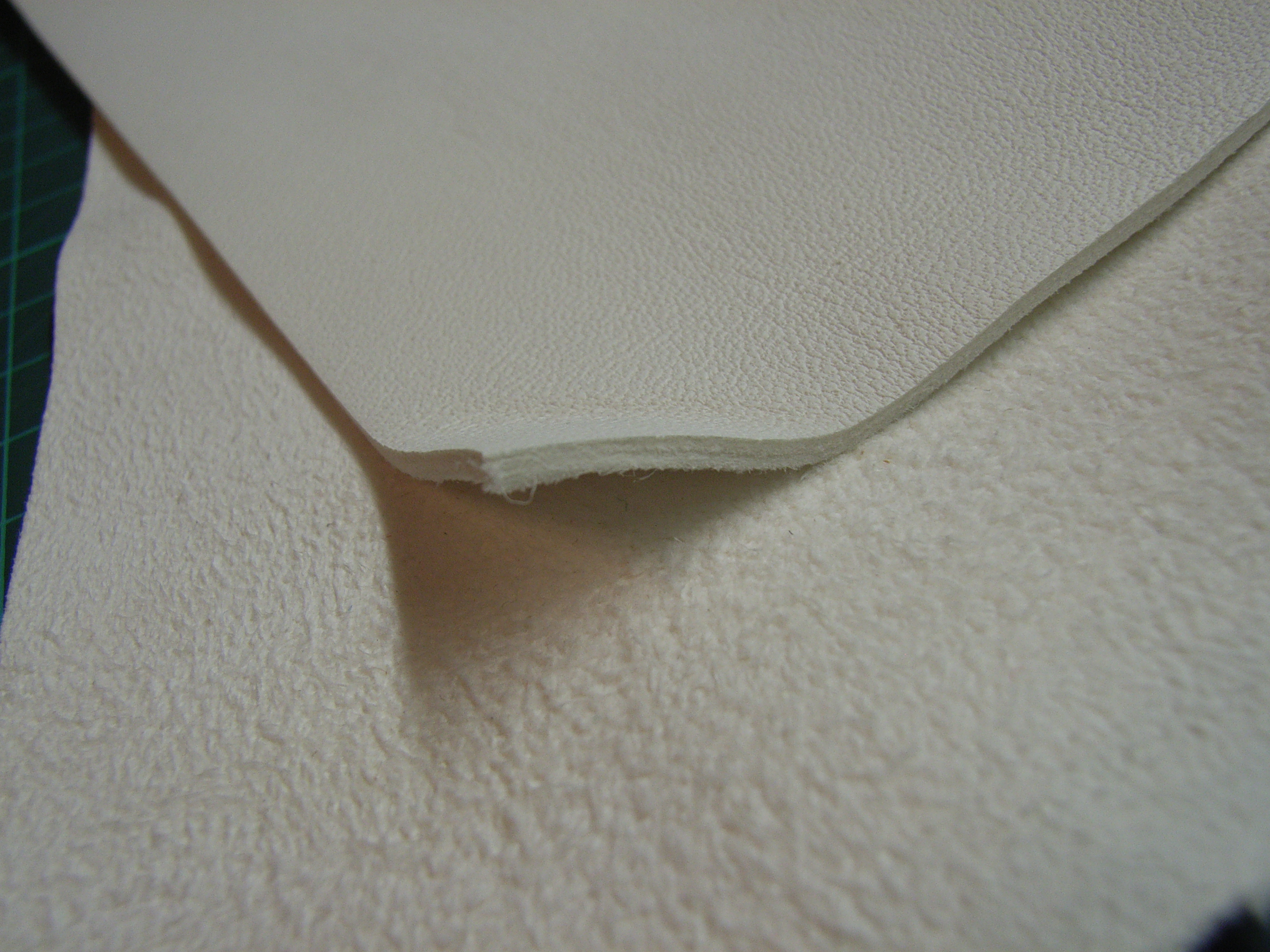

Sheep - for gaskets, etc. 1 - 1.6mm. (We will cut to your size) |
£14.40 |

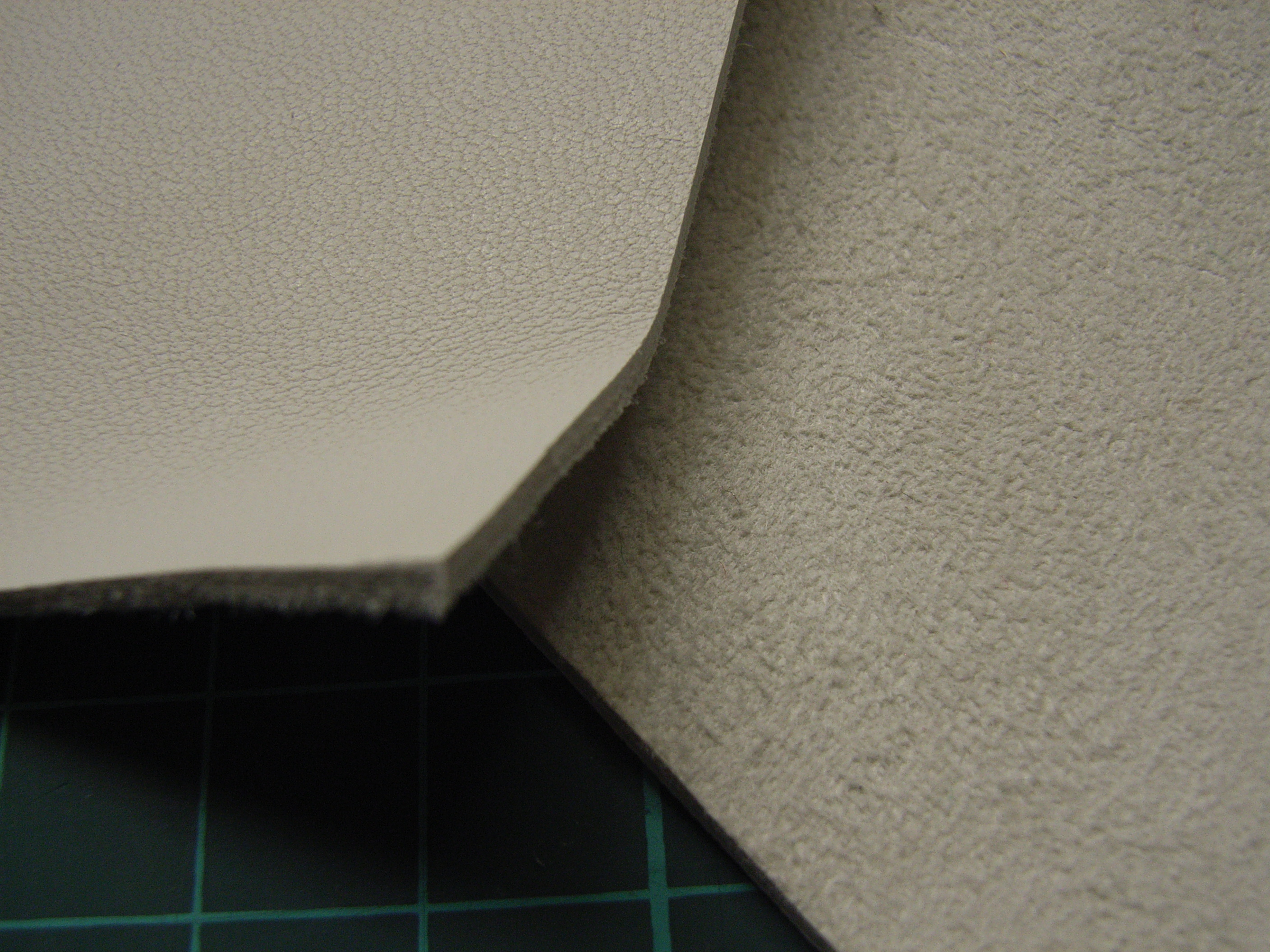

| L4 | Sheep - for valve facings | £14.40 |
| L5 | Zephyr Skin - Singing bird boxes, etc. | 25p/ sq. in. |
| L7 | Pouches cut to size (ask for available sizes) | 40p. each |
Other Leathers available, please ask
I stock a selection
of medium density felt which is useful for most piano applications. It
is approx. 72" (1.8m.) long and is usually required in narrow strips as
priced below (other sizes available on request, priced pro-rata). Depending
on current stock I can also supply pieces priced "per sq. ft.".
I can obtain special hard felts and thick baises from piano trade suppliers
on request (but they work out quite a bit more expensive than this felt).
| Thickness | Price per strip approx. 72" (1.8m.) long | Price per sq.ft. | |||
| 1/2" (12.5mm.) wide | 3/4"(19mm.) wide | 1"(25mm.) wide | |||
| 1mm.(1/16") | 50p. | 75p. | £1.00 | £2.00 | |
| 3mm.(1/8") | £1.50 | £2.25 | £3.00 | £6.00 | |
| 4mm.(5/32") | £2.00 | £3.00 | £4.00 | £8.00 | |
| 5mm.(3/16") | £2.25 | £3.40 | £4.50 | £9.00 | |
| 6mm.(1/4") | £3.00 | £4.50 | £6.00 | £12.00 | |
PLEASE NOTE – We cannot exchange any materials which have been cut for you
Nuts for control shafts
Leather 10mm.(3/8") £2.20 per dozen. - £20.00 per 100
Plastic 10mm. (3/8") £1.60 per dozen
Pedal Mats – Original Rubber ‘P’ style design
10cm. x 24.5cm. (4" x 9.5") £16.00 per pair
V – Springs – Steel
202mm. (8") £17.50 each
150mm. (6") £17.50 each
Piano Action parts
Bridle straps (clip-on type) -------------30p. each ---------------£24.00 per set (88)
Other parts, baizes and washers (for under keys),
springs, etc. Also piano castors.
Let us know what you need, or better still send
a sample, and we will quote.
Reeds
I have a selection of (mostly) brass reeds suitable for Orchestrelles, Harmoniums and some Organettes, etc. Let me know what you need and I will check my stock.
Graphite - dry. (mix with meths to apply) for lubricating actions £5.00 sml.drum
Ladder chain £2.50 per 305mm.(ft.)
Pearl Glue £5.50 per 500g.
Titebond Liquid Hide Glue £3.70
- 118ml. (4oz.) bottle. [This is the same as hide glue but with an additive
to keep it liquid. Ideal for small repair jobs to save heating up the
glue pot. Not recommended for major jobs like recovering or fixing pneumatics].
EVAPORUST £10.00 per 1 litre bottle.
[Probably the only retail outlet in the UK for this product, which is
a ph neutral rust remover - non toxic too. Successfully tested on musical
box discs and combs in the US by Craig Smith].
See www.evapo-rust.com
Roll Repair Tabs - Self-adhesive tabs with brass 'D' ring for repairing ends of rolls (not the full leader - just the end bit). ------------------------------------ £0.25p each ------£2.70 per dozen ------£21.00 per 100
Traditional Tracker Bar Pump, with removable filter - £35.00
Tracker Bar Cleaner – (Shaped
attachment for vacuum cleaner hose) £4.00ea. (DISCONTINUED)
Suction Box - Motorise your pianola - Price - £315.00 [one only left at this price]
(Postage within UK - £15.00)
(Special Order - Normally supplied within 3 weeks - new price will be
£380.00)
These suction boxes are imported from America and are specifically designed for converting pianolas to semi-automatic electric operation. The suction box has electronic variable suction control for play and re-wind and can produce up to 50 inches of suction. The box is 7 inches square and will normally fit in the bottom right of the pianola (external hole needed for electrical cable). The package includes:-
Suction Box (with one way valve
which allows foot pumping when switched off)
Connection Tubing
Metal Flanged elbow (you need to cut a hole in the back of the reservoir
to connect the suction supply)
Control Panel (to be fixed under keyboard)
Re-wind Microswitch (to be linked to re-wind lever to provide different
speed for re-roll)
Fitting and Operating Instructions, screws, wiring.
(NOTE:- Since these are manufactured in
the US, they are 115 volt motors, so you will also need a 230/115 volt
transformer. A suitable transformer is available from Farnell in One
, or try your local B&Q
- some have reasonably priced 110 volt tool transformers in a yellow plastic
case).
Full Automation kit also available, similar to the above
but includes end of roll detection and automatic re-roll and cut-off.
Price - £580 + delivery (£15 in UK). (Special Order - Normally
available within 3 weeks).
Needs transformer as above.
Player Piano Rebuilding & Servicing A Reblitz £15.00
Piano Servicing, Tuning & Rebuilding A Reblitz
SOLD OUT - Sorry!
Aeolian Roll Catalogue (Hardback – 1972 reprint, slight fading on cover) £5.00
IF THERE IS ANYTHING ELSE YOU NEED, PLEASE ASK
IF YOU NEED PIANO SPRINGS, SEND A SAMPLE FOR US TO MATCH
IF YOU ARE IN DOUBT AS TO WHICH CLOTH, TUBING OR LEATHER YOU REQUIRE, SEND A SAMPLE FOR US TO MATCH.
WE MAY ALSO BE ABLE TO OFFER ADVICE ON RESTORATION IN GENERAL, PROVIDE TUBING DIAGRAMS, etc. e-mail us at info@musicanic.com
We require payment in advance for all orders.
Payment methods:-
Cash, Cheque (made payable to J Farmer), Postal/Money Order .
OR
By Credit/Debit card using PayPal (You
need an e-mail address and internet access – I will e-mail you a
PayPal invoice which you pay on-line through PayPal’s Secure Server.
You do not need a PayPal account to do this).
Postage & Packing – I will advise P&P charges on receipt of your order. Orders will be sent First Class Recorded or Parcel Force with insurance as appropriate, on receipt of payment. Special Delivery (next day) on request.
